White Drive Products

O-Series Motors

O-Series - the flexible choice

The O-series is flexible beyond compare. Delivering premium power across the board, these motors cover small to large, medium to heavy-duty needs with pressure cpapbility up to 275 bar (3990 psi). Robust, reliable and designed to fulfill the latest emissions standards.

Orbital X - the new generation

Orbital X is the new generation of OMP and OMR motors. With its unseen modular platform, form and fit with existing applications, it redefines motor conversion, improves performance and reduces total cost of ownership. Orbital X is preparing for the future and is where the majority of product improvements will be made.

O-series characteristics:

  • Motors with corrosion resistant parts
  • Wheel motors with recessed mounting flange
  • Motors with needle bearings
  • Motors in low leakage version
  • Motors with integrated brake
  • Motors with speed sensor

Features and benefits:

  • Corrosion-resistant to withstand the most challenging conditions
  • Dust seal cap for resistance to high dust concentrations
  • Robust cardan shaft for longer life in demanding applications
  • Low leakage version for energy savings
  • Recessed mounting flange on wheel motors, giving optimal utilization of bearing capacity

Application Opportunities:

Danfoss medium-size motors are easily installed in. for example, forklift trucks, turf care machinery, aerial lifts, winches, harvesting and placting equipment, sweepers and spreaders.

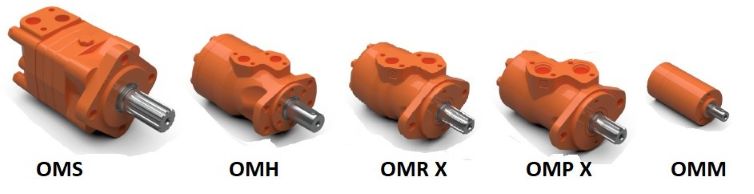

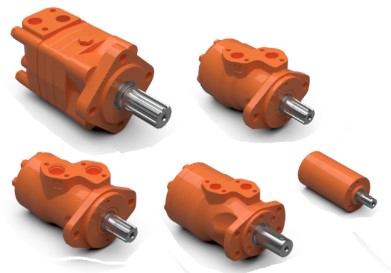

Product Range:

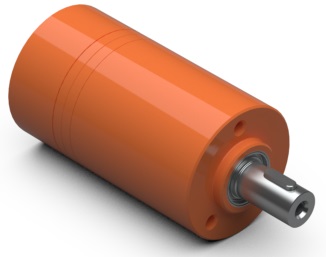

OMM Series

  • The motors vary in size (rated displacement) from 8 cm3 to 32 cm3  per revolution.
  • Speed range (continuous) up to approx. 1950 rpm for the smallest type and up to approx. 400 rpm for the largest type.
  • Maximum continuous operating torques vary from 11 Nm to 46 Nm and maximum continuous outputs are from 1.8 kW to 2.4 kW.

OMP X Series

  • The motors vary in size (rated displacement) from 25 cm3 to 400 cm3  per revolution.
  • Speed range (continuous) up to approx. 1600 rpm for the smallest type and up to approx. 155 rpm for the largest type.
  • Maximum continuous operating torques vary from 40 Nm to 400 Nm and maximum continuous outputs are from 5.4 kW to 11.2 kW.

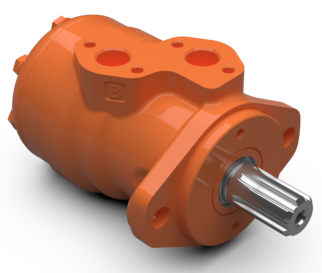

OMR X Series

  • The motors vary in size (rated displacement) from 50 cm3 to 400 cm3  per revolution.
  • Speed range (continuous) up to approx. 775 rpm for the smallest type and up to approx. 155 rpm for the largest type.
  • Maximum continuous operating torques vary from 100 Nm to 400 Nm and maximum continuous outputs are from 7.0 kW to 14.0 kW

OMH Series

  • The motors vary in size (rated displacement) from 200 cm3 to 500 cm3  per revolution.
  • Speed range (continuous) up to approximate 370 rpm for the smallest type and up to approx. 155 rpm for the largest type.
  • Maximum continuous operating torques vary from 510 Nm to 610 Nm and maximum continuous outputs are from 8.5 kW to 16.0 kW

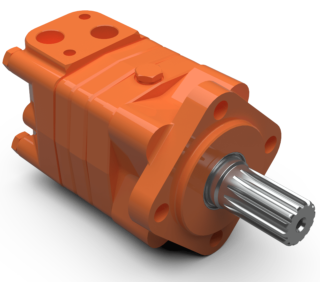

OMS Series



  • The motors vary in size (rated displacement) from 80 cm3 to 500 cm3  per revolution.
  • Speed range (continuous) up to approximate 810 rpm for the smallest type and up to approx. 155 rpm for the largest type.
  • Maximum continuous operating torques vary from 240 Nm to 865 Nm and maximum continuous outputs are from 9.0 kW to 18.0 kW
