BEZARES TRUCK PUMPS

Bezares

Hydraulic Pumps

for truck applications

Bezares BE

Model: BE

Gear pump with reversible sense of rotation and internal drainage. Rear and side ports.

  • Displacement: 19 to 46 cc/rev
  • Max. continuous pressure: 260 bar
  • Mount: 4 bolt DIN (ISO 7653)
  • Shaft: B8x32x36 DIN 5462 (ISO 14)

Bezares BEU

Model: BEU

Gear pump with reversible sense of rotation and internal drainage. Rear and side ports.

  • Displacement: 19 to 41 cc/rev
  • Max. continuous pressure: 260 bar
  • Mount: 3 bolt UNI
  • Shaft: UNI 8953 6x21x25

Bezares BEL

Model: BE L

Gear pumps high pressure with side and rear ports which gives ample mounting bi-directional.

  • Displacement: 50 to 100 cc/rev
  • Max. continuous pressure: 290 bar
  • Mount: 4 bolt DIN (ISO 7653)
  • Shaft: B8x32x36 DIN 5462 (ISO 14)

Bezares BE XL

Model: BE XL

Gear pumps with heavy duty body, side and rear ports. Double support by taper roller bearings on the shaft.

  • Displacement: 103 & 118 cc/rev
  • Max. continuous pressure: 250 bar
  • Mount: 4 bolt DIN (ISO 7653)
  • Shaft: B8x32x36 DIN 5462 (ISO 14)

Bezares BEA

Model: BEA

Gear pump with reversible sense of rotation and internal drainage. Aluminium body, permits to work at highh pressures with a low level of noise.

  • Displacement: 11 to 19 cc/rev
  • Max. continuous pressure: 250 bar
  • Mount: 4 bolt DIN (ISO 7653)
  • Shaft: B8x32x36 DIN 5462 (ISO 14)

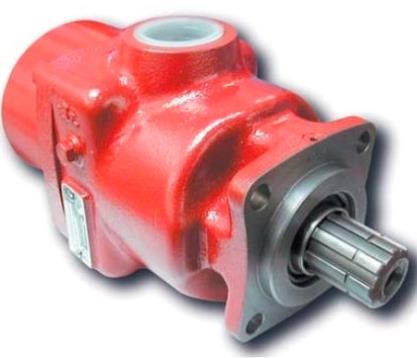

Bezares BZ

Model: BZ

In -line piston pump with reversible sense of rotation.

  • Displacements: 12, 30 & 50 cc/rev
  • Max. continuous pressure: 250 bar
  • Mount: 4 bolt DIN (ISO 7653)
  • Shaft: B8x32x36 DIN 5462 (ISO 14)

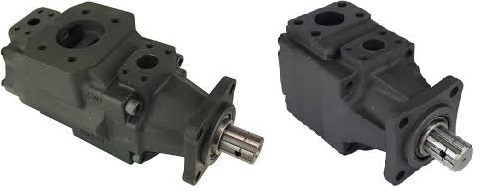

Model: DT6GC/DT6GCC

TDZ Fixed displacement vane pump

  • Displacements: 79 cc/rev (single pump) / 58cc & 46cc (tandem pump)
  • Max. continuous pressure: 240 bar
  • Mount: 4 bolt DIN (ISO 7653)
  • Shaft: B8x32x36 DIN 5462 (ISO 14)
  • Counter clockwise rotation
  • Speed range: 700/2800 rpm
