BEZARES DC POWER PACKS

Bezares

MINI DC POWER PACKS

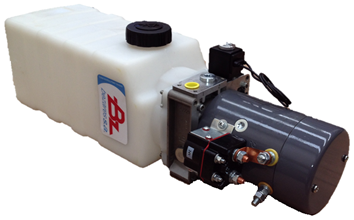

Bezares DC Power Pack

The basic components of the power pack are:

  • a manifold block with cavities for various types of valves
  • a high efficiency gear pump
  • an electric DC motor (12V or 24V)
  • a reservoir (plastic or steel)
  • several optional accessories

Technical Specifications (DC Electric Motor - Non Ventilated)

Voltage 12 V DC 24 V DC
Power 1.5 kW 2.0 kW
Nominal Speed* 2400 rpm 2300rpm
Degree of Protection IP54 IP54
Pump Displacement 2.1 cc 2.1 cc
Pressure Range 40-270 bar 40-270 bar

* Dependent upon operating pressure

Technical Specifications (DC Electric Motor - Ventilated)

Voltage 12 V DC 24 V DC
Power 2.4 kW 3.0 kW
Nominal Speed* 2600 rpm 3300rpm
Degree of Protection IP12 IP12
Pump Displacement 3.3 cc 3.3 cc
Pressure Range 40-270 bar 40-270 bar

* Dependent upon operating pressure
