VICTOR CYLINDERS

Victor Hydraulic Cylinders

Victor

Compact S (smaller bores)

c1

Bores: 1.5" to 3.5"

  • Threaded head design - hard wearing cast iron or steel with bearing rings, depending on bore/shaft configuration.
  • High tensile precision torqued cap screw piston fixing up to 3.5" bore.
  • Blind threaded piston also available in 3.5" bore



Compact S (larger bores)

c2

Bores: 3.5" to 8.0"

  • Threaded steel head.
  • Blind threaded piton locked with nylon ring.
  • Replaceable heavy duty glass reinforced bearing rings
  • 10", 12" and larger bores available on request.



Compact Super S

c2

Bores: 1.5" to 4.0"

  • Threaded head design - hard wearing cast iron or steel with bearing rings, depending on bore/shaft configuration.
  • High tensile precision torqued cap screw piston fixing up to 3.5" bore.
  • Blind threaded piston locked with nylon ring from 3.5" bore.
  • Compact Super S styles are available for larger bore cylinders.



Compact Top Link Series

C4

Bores: 2.5" to 4.0"

  • Cat 2 or 3 ball end.
  • Extended base for increased clearance
  • Common sizes ex stock.
  • High tensile precision torqued cap screw piston fixing.
  • Cap screwed piston connection.
  • "BSP" ports (UNO ring available)

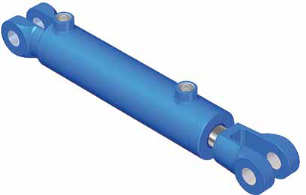

Compact SAE Series

C5

Bores: 2.5" to 4.0"

  • Built to international SAE J716 / ISO 2057 Standards - gives full in-the-field interchnageability
  • Threaded head design - hard wearing cast iron or steel with bearing rings, depending on bore/shaft configuration.
  • High tensile precision torqued cap screw piston fixing up to 3.5" bore.
  • Blind threaded piston for 3.5" and 4.0" bores.

Compact Cylinders Summary

  • Threaded head design
  • Common sizes ex stock
  • Rapidly mmanufactured to your dimensional and fitting requirements
  • Compacty closed centre dimensions
  • Precision manufactured to extreme standards of dimensional accuracy
  • Rated to 210 bar (3000 psi) continuous operating pressure (350 bar (5000 psi) intermittent)
  • All seals rated to 400 bar (6000 psi)
  • Absolute concentric construction
  • "BSP" ports (UNO available)
  • Hard chrome shaft
  • Precision bore tube for accuracy, oil retention and extended seal life
  • Five piece piston seal with acetal wear rings
  • Alternative seal material available
